Quality

Modern-Tec Manufacturing believes Quality is an expectation. Modern-Tec structures itself on a promise of Total Quality; and to meet or exceed that expectation. The product quality cycle spans all aspects from quote-to-delivery.

Providing quality measurements is one of our top priorities in business. Keeping this in mind we know that the best machines capable of repeating solid results are made by Brown & Sharpe.

Our CMMs and Vision Systems are outfitted with PC-DMIS Measurement Software from Hexagon Metrology, and for Data Collection and Analysis we use QC-CALC from Prolink Software. These two powerful and flexible programs allow us to better analyze inspection data for trends and patterns to head off issues before they become problems.

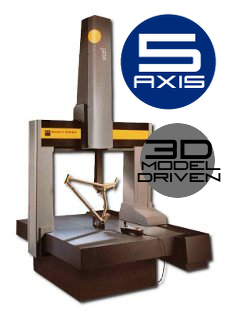

Brown & Sharpe Xcel 9-15-9
COORDINATE MEASUREMENT MACHINE

Brown & Sharpe Xcel 9-15-9 51” W X 86 1/2" L X 8” Thick Granite Surface Plate Renishaw Model PH10MQ Probe Head PC-DMIS 2014 Cad++ Measurement Software QC-CALC Data Collection and Analysis Software PH10MQ - The advantage of the highly repeatable, kinematic autojoint is that it allows for DCC probe or extension bar changing without the need for re-qualification.



Brown & Sharpe Global Performance 575
COORDINATE MEASUREMENT MACHINE

Brown & Sharpe Global Performance 575 30 1/2” W X 47” L X 6 1/4” Thick Granite Surface Plate Renishaw PH10M Plus Head PC-DMIS 2016.0 Cad++ QC-CALC Data Collection and Analysis Software

Brown & Sharpe Global Performance 555
COORDINATE MEASUREMENT MACHINE (2 MACHINES)

Brown & Sharpe Global Performance 555 30 1/2” W X 39” L X 6 1/4” Thick Granite Surface Plate Renishaw PH10M Head PC-DMIS 2014 Cad++ QC-CALC Data Collection and Analysis Software



Mycrona Primus Signum D 600x500x250
LARGE SCALE VISION MEASUREMENT MACHINE

Brown & Sharpe Mycrona Signum D Approx. 28" by 22" Vision Plate Renishaw PH6 Probe Head Renishaw TP200 Touch-Trigger Probe PC-DMIS Vision 2014 600x500x250 • Analog Camera • CNC controlled zoom optics without lens • LED backlight system • PH6 vertical probe head • Resolution (.000004 inch) 100nm

Mycrona Primus Blue Line
MULTISENSOR MEASUREMENT SYSTEM

Brown & Sharpe Mycrona Primus Blue Line Approx. 12 1/2" by 7" Vision Plate Renishaw PH6 Probe Head Renishaw TP200 Touch-Trigger Probe PC-DMIS Vision 2014 • Analog Camera -- ½" CCD 768 x 576 pixel. VPU and wiring • CNC controlled zoom optics without lens, 10 pre-calibrated zoom steps ( pixel size and working distance depends on the selected pre-optics, which are described below) • Pre-optics 3.1x for CNC zoom, 1.5 -- 9.3 µm/Pixel, working distance 78mm • LED backlight system • PH6 vertical probe head • White Light Sensor (WLS 3mm): • Resolution (.000004 inch) 100nm



Brown & Sharpe Optiv Classic 3.2.1 GL tp
VISION MEASUREMENT MACHINE

Brown & Sharpe Optiv Classic 3.2.1 GL tp Approx. 14 1/2" by 10 1/2" Vision Plate Renishaw TP20 Touch-Trigger Probe PC-DMIS Vision 2014 - 300 x 200 mm XY measuring range with 150 mm Z axis - Vision sensor with high-resolution CCD color camera - CNC motor zoom - Incident light, transmitted light and multiple segment ring light illumination using LEDs



Commitment to Quality

Our prime objective is to provide our customers with optimum value by providing exceptional service, and fulfillment of the product requirements.

Our Quality Objectives are maintained through continuous improvement activities by our fully trained staff. Modern-Tec's facilities are fully climate controlled, ensuring uniformity and consistency during part production.

Modern-Tec’s Quality Management system is certified to the ISO 9001:2008 standard.
